FAS (uk) Ltd

Tel/Fax: 01492 860530

Mobile: 07753 686907

Fastening and Assembly Systems

Ex-assembly torque controlled tooling stock

Various types and quantity of tooling available and will be supplied serviced and calibrated and with a 3 month warranty

Type

Max Torque

Torque Control

Angle Control

Controller I/O

Fixtured Option

Price from

DC Electric Angle tooling

Various up to 135.0Nm

Transducer

Yes

Full I/O Available

yes

£1,875.00 + VAT

DC Electric Straight tooling

From 1.0 to 150.0 Nm

Transducer

Yes

Full I/O Available

yes

£1,875.00 + VAT

DC Electric Straight Screwdriver

3.0 Nm

Mechanical clutch

Limited I/O Available

yes

£150.00 + VAT

Pneumatic Angle tool

60.0 Nm

Mechanical clutch

N/A

yes

£150.00 + VAT

Pneumatic Straight Screwdriver

5.0 Nm

Mechanical clutch

N/A

yes

£150.00 + VAT

Torque Reaction Arms

Up to 80.00 Nm

N/A

£350.00 + VAT

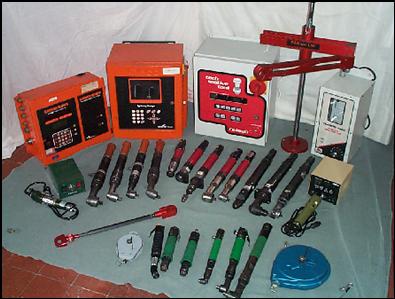

Sample of Tooling Available

DC Electric transducer controlled tooling systems have full I/O capability including;

Cycle on input

Fwd/rev input

Remote fastening parameter select inputs; i.e. socket select etc.

24V DC ouput

OK output

Reject output

In cycle output

Cycle finished output

Most of the DC Electric tool control systems have networking with data storage and analysis capabilities. The systems can be installed as stand alone tooling or easily integrated into a control system to give a no faults forward fastening system. Please contact us for further details.

The price for a DC Electric tool and control system will include initial programming and one day on site for installation and commisssioning. This excludes any ancilliary equipment, i.e. mounting braketery, drive sockets and extensions or torque reaction equipment etc. Please ask for a price for this equipment if required.

For further information please contact: Gary Gilbert on: 01492 860530; mob: 07753 686907;
