Cylinder Head PC Controlled Positioning and Fastening System

The system is designed to carry out accurate fastening of cylinder head bolts with a single tool used by one operator over a  sequenced fastening cycle. The engine is interlocked into station, the  build card is scanned and a socket select system clearly shows the correct socket to be used. A PC screen layout of the cylinder head bolts is displayed, with the next bolt in the fastening sequence clearly identified. The tool position is tracked by the system and is shown on the display. Once the tool is in the correct position over the correct bolt, it is enabled and the bolt can be fastened to the correct torque and angle setting. The tool will only be enabled once all the control conditions are met. Once the bolt has achieved a successful fastening cycle the tool is disabled, the system shows the next bolt in the fastening sequence, if a different socket is required this is clearly shown. The tool can now be positioned to the next bolt and so on until all the head bolts are secured for that particular fastening stage. Once all bolts are secured the system automatically changes the torque setting for any further stages. Should any individual bolts require a different setting the system identifies them by their position and automatically selects the correct setting. Once an engine has successfully completed a cylinder head the interlock is released and the engine can be removed from the work station.

This system is currently   configured for 5 different engine types and can be configured for many more. The same type of system is currently utilised on Main Bearing and Con-Rod assembly areas for 5 different engine types. Based on the success of these systems another complete system has  recently been installed.

Oil Pump Positioning Assembly System

• Single Spindle DC electric Fastening System

• Air Balanced Torque Reaction Arm to 175 Nm

• Torque and Angle control with Data Storage

• Position control to ensure bolts are secured in the correct  sequence

• Mimic panel display of sequence and ok/reject fastening cycle

• Socket Selection of torque/angle parameters for different bolts

• Interlock pump in station to ensure No Faults Forward assembly strategy

• Reset key switch to release pump for faulty components

• Quick and accurate assembly system

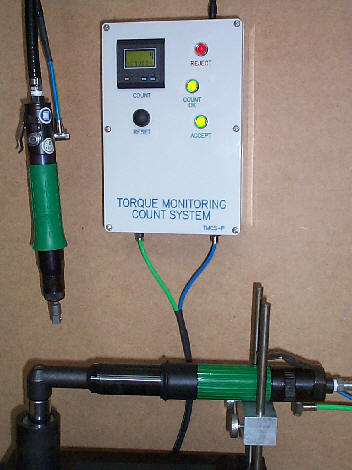

Pneumatic Torque/Time Count System TMCS-P

• Pneumatic Torque Controlled shut off tooling

• Accurate Electronic Comparison of Torque Shutoff and Rundown Time

• Detects damaged/crossed & stripped threads

• Visual Display of Accept or Reject Fastening

• Programmable Count of OK Fastenings

• Display of Count

• Output of Count Complete, Accept or Reject Cycles

• Automatic Reset of Count for Next Fastening Cycle

• Manual or External Reset of Count for a Reject Component

• Easy interface with control PLC for production line assembly or interlock system for No Faults Forward Assembly

• TMCS Control unit easily interchanged between tooling

• Multiple channel units available

• A less expensive alternative to DC Electric tooling

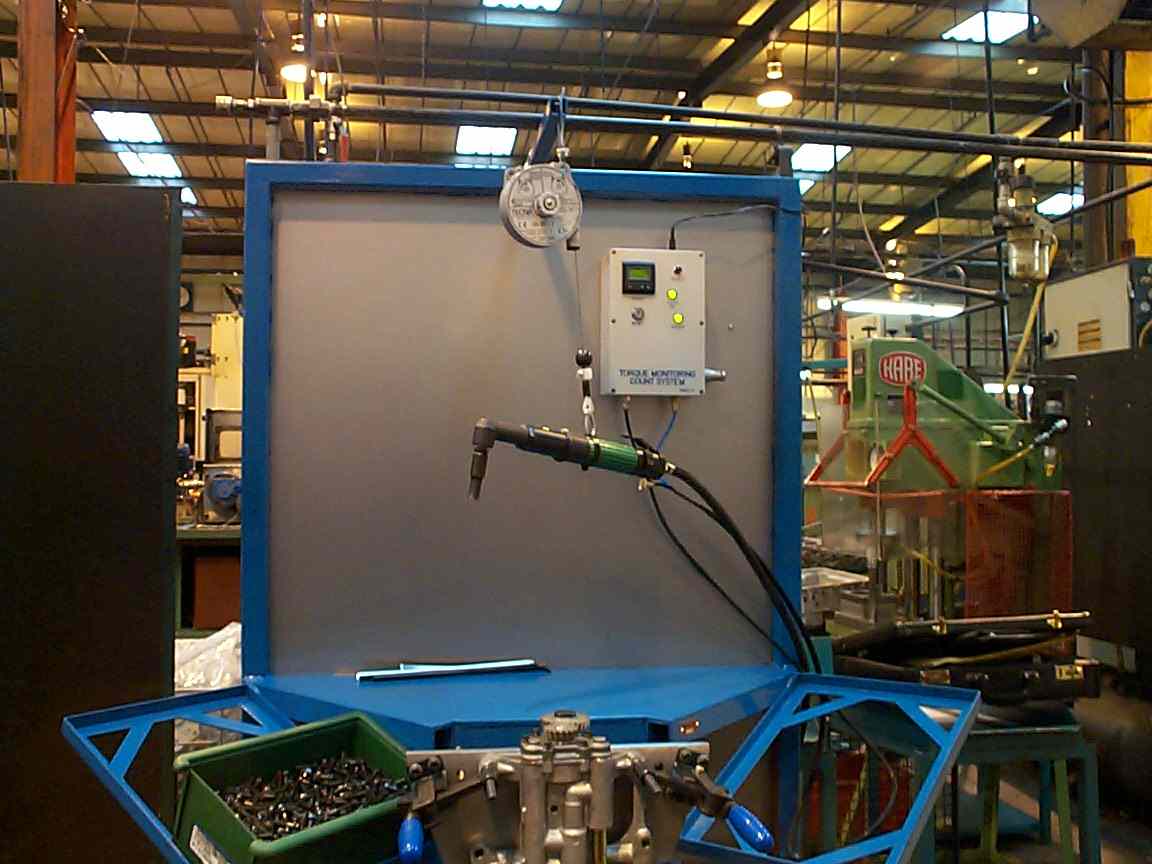

Oil Pump Assembly Station

• Utilising TMCS/P technology

• Pneumatic Torque Controlled Tooling

• Electric Torque/Time Monitoring Count System

• I/O interface of OK, not OK and count complete

• Programmable and lockable count system

• Fasteners are secured within a torque/time signature

• OK, Reject and Count Complete display

• Reset switch for faulty components

• No Faults Forward fastening system

Brake Disc Assembly Station

• Twin Spindle Automatic DC Electric Fastening System

• Automatically assembles a range of Disc Types

• Dimensional measurement check across the disc Surface

• 12 bolt automatic indexing with 4 socket select system for different fastening strategies

• Bolt number easily changed for different disc types

• Automatic or manual run out  and thick thin measurement check

• HMI interface for display and set up of assembly system with data storage

• Flexible No Faults Forward Automatic Assembly System

• Frees operator for additional work and reduces assembly time
